ANMO - Albuquerque, New Mexico (photo1, photo2)

  Information for ANMO as of November 1996
Station: Albuquerque Seismological Laboratory
Director: Dr. C. R. Hutt Network Affiliation: IRIS/USGS - GSN
Address:
Albuquerque Seismological Laboratory
Building 10002 Kirtland AFB east
Albuquerque NM 87115
Network Contact:
Albuquerque Seismic Laboratory
Building 10002 Kirtland AFB East
Albuquerque, NM 87115
Telephone: 505 846 5646 Open Station: Yes
Phone No. 505 846-5646
Fax: 505 846 6973 Parent Organization:
U.S. Geological Survey
Email: hutt@asl.cr.usgs.gov
Coordinates:
Latitude: 34.9462N
Longitude: 106.4567W
Elevation to Sensor: 1740
Depth to Sensor: 100
Geology: Pensylvanian and later sediments overlying a peneplained Pre-Cambrian complex of metasediments and granitic intrusives. Borehole is drilled through 6 meters of alluvial overburden and 94 meters of fractured granite.

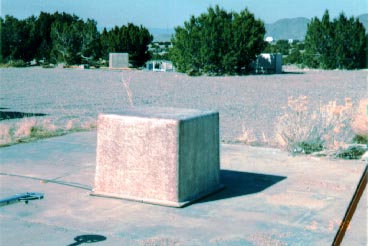

Vault Conditions: On 30 Oct 1992 the very short-period seismometers (Geotech Model GS-13) were relocated in a surface vault approximately 100 meters distant from the borehole. The seismometers are located on a concrete floor poured on top of exposed granite rock. Vault is covered with about 1 meter of earth. Temperature and humidity are stable, however, strong winds cause high frequency background noise. Prior to this time the very short-period system was located in the vault which was used for the ALQ seismograph system. Please note that the coordinates and elevation for this vault are slightly different. This information can be found in the listing for station ALQ.
Site Description: N/A
  Addresses from which to obtain data.
Station Instrumentation
1. Global Seismograph Network - GSN: [IU] 14 Jul 1995 to Present
2. Global Seismograph Network - GSN: [IU] 21 Mar 1995 to 14 Jul 1995
3. Global Seismograph Network - GSN: [IU] 03 Feb 1995 to 21 Mar 1995
4. Global Seismograph Network - GSN: IRIS-2 System [IU] 27 Nov 1990 to 03 Feb 1995
5. Global Seismograph Network - GSN: IRIS-1 System [IU] 29 Aug 1989 to 26 Nov 1990
6. Seismic Research Observatory - SRO: [SR] 01 Sep 1974 to 28 Aug 1989
